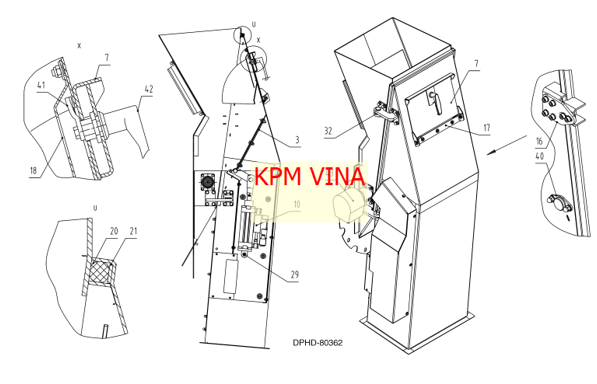

BUHLER DPHD-80362-810

Inlet channel with bypass

DPHD-80375-810 Bypass flap, screwed
DPHD-80363-810 Maintenance flap assembly
DPHD-80102-810 Pneumatic cylinder assembly
DPHD-11069-010 Locking plate
DPHD-11117-010 Hinge
DPHD-11121-010 Perforated sheet
DPHD-80362-200 Foam rubber profile UNR-57744-207
DPHD-80362-210 Foam rubber profile UNR-53745-003
UNN -14028-011 Retaining ring
UNN -58000-218 Flange bearing bushing D 16/22×12
UXN -54019-006 Flange bearings
UXN -32020-109 Latch 35×20
UXN -32020-002 Handle with housing
UXE -26215-101 Filling level display 24 V DC
