CPM2322

12

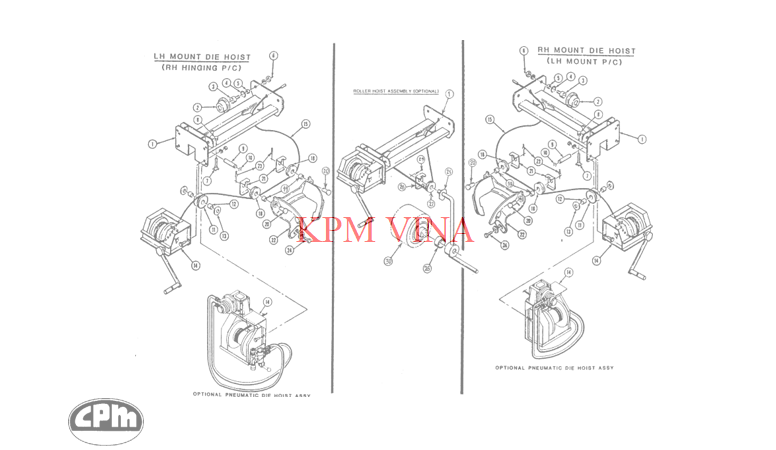

ITEM NO PART NUMBER QTY PART DESCRIPTION
1 0-5705-01 1 Die Hoist Trolley
2 0-4058-00 4 Flanged Roller
3 3-2195-00 4 Bearing
 3-9070-02 4 Lock Washer 3/4″
3-9052-01 4 Nut 3/4-IONC Hex Jam
4 3-2769-00 4 Retaining Ring
5 5-2386-02 4 Spacer
6 3-2218-00 4 Lube Fitting 3/16″ Drive Type
7 3-2979-01 1 Hand Knob and Screw
8 3-2980-00 1 Toggle Pad
9 5-2309-00 1 Roller Pin
10 3-0106-00 2 Retaining Ring-Truarc 5100-100
11 0-4074-00 1 Die Hoist Roller
12 3-0223-02 2 Bushing
13 3-9072-03 2 Flat Washer 1″
14 5-7759-00 1 Die Hoist Winch (500 Kg) – 1100 Lbs
4-5067-00 4 Cap Screw M16 x 2 Hex Hd x 35 MM Lg
3-9154-03 4 Lock Washer M16
4-5047-00 4 Nut M16 x 2 Hex
5-2394-50 1 Die Hoist Label
15 3-0791-08 1 Cable
16 N/A
17 N/A
18 5-1590-00 2 Roller
19 3-0223-05 2 Roller Bushing
20 5-1589-02 2 Roller Pin
21 5-2468-00 2 Roller Safety Bracket
22 5-7151-05 1 Die Lifting Plate
23 3-1141-01 2 Cotter Pin 1/8″ Dia x 1-1/2″ Lg
24 3-9026-01 2 Cap Screw 3/4″-10NC Hex Hd X 2″ Lg
3-9070-14 2 Flat Washer 3/4″
OPTIONAL
8-0675-00 1 Roller Hoist Assembly
25 *5-2453-00 1 Roller Hoist
26- *0-1732-00 1 Roller Shaft Bushing
27 *5-1590-00 1 Roller
*3-0223-05 1 Bushing
28 *5-2468-00 1 Roller Safety Bracket
29 *3-0996-01 1 Cotter Pin 3/16″ Dia. 1-1/2″ Lg
*5-2453-50 1 Caution Label
30 Rollers
