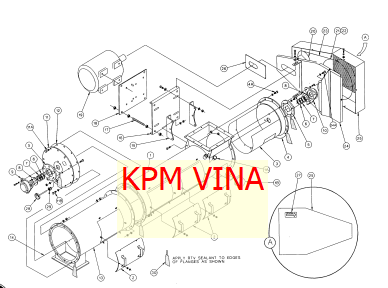

CPM2322

ITEM PART
NO NUMBER QTY PART DESCRIPTION
1 0-5645-02 1 Conditioner Shell
1A See PAGE ONE 1 Temperature Probe
1B 3-3602-02 1 Caplug, Series T Cap
2 0-5645-51 3 Conditioner Clean-out Cover
**3-3765-02 2 Self Adhesive Closed Cell Neoprene Rubber
Style 4211-N: 4.8 MM (3/16″) THK x 38 MM
(1-1/2″) W x 397 MM (15-5/8″) Lg
**3-3765-03 2 Self Adhesive Closed Cell Neoprene Rubber
Style 4211-N: 4.8 MM (3/16″) THK x 38 MM
(1-1/2″) W x 390 MM (15-11/32″) Lg
4-5074-01 18 Flat Washer M10
4-5064-00 18 Nut M10 x 1.5 Hex
3 0-5659-00 1 Steam Manifold
4 0-5656-00 1 Conditioner End Plate (Rear)
4A 4-6392-01 2 Cap Screw M16 x 2 Hex Hd x 40 MM Lg SS
4-5370-00 6 Cap Screw M16 x 2 Hex Hd x 40 MM Lg
3-9154-03 8 Lock Washer M16
4-5047-00 6 Nut M16 x 2 Hex
5 0-5657-00 2 Conditioner Bearing Base
4-6392-01 3 Cap Screw M16 x 2 Hex Hd x 40 MM Lg SS
3-9154-03 3 Lock Washer M16
6 4-5276-00 4 Felt Ring – SKF F113
7 5-5417-00 2 Spacer for Felt Ring
8 0-5658-00 2 Seal Squeeze Plate
4-6026-00 8 Cap Screw M8 x 1.25 Hex Hd x 16 MM Lg SS
4-5409-01 8 Lock Washer M8
8-9294-00 1 End Bearing Assembly (Floating)

9 *4-6758-50 1 Flanged Housing with End Cap SKF 722512 DA
*4-6758-54 1 Felt Strip (Incl. w/Housing) SKF FS260
*4-6758-01 1 Bearing (Ball) – SKF 1212K
*4-6758-52 1 Adapter Sleeve SKF H212
4-5593-01 3 Cap Screw M12 x 1.75 Hex Hd x 40 MM Lg SS
4-5027-00 3 Lock Washer M12
8-9294-01 1 Through Bearing Assembly (Fixed)
10 *4-6758-51 1 Flanged Housing with Seal Housing 722512 DB
*4-6758-54 2 Felt Strip (Incl. w/Housing) SKF FS260
*4-6758-01 1 Bearing (Ball) SKF 1212K
*4-6758-52 1 Adapter Sleeve SKF H212
*4-6758-53 1 Locating Ring SKF 1 FRB 8/110P
4-5593-01 3 Cap Screw M12 x 1.75 Hex Hd x 40 MM Lg SS
4-5027-00 3 Lock Washer M12
11 0-5655-00 1 Conditioner End Plate (Front)
11A 3-9128-00 7 Cap Screw M16 x 2 Hex Hd x 50 MM Lg
11B 4-5773-01 1 Cap Screw M16 x 2 Hex Hd x 50MM Lg SS
4-6404-00 2 Cap Screw M16 x 2 Hex Hd x 55 MM Lg
3-9128-03 2 Cap Screw M16 x 2 Hex Hd x 55 MM Lg SS
3-9154-03 9 Lock Washer M16
3-9154-02 3 Lock Washer M16 SS
4-5047-00 9 Nut M16 x 2 Hex
4-5047-01 3 Nut M16 x 2 Hex SS
12 0-5655-50 1 Conditioner End Plate Liner
4-5773-01 3 Cap Screw M16 x 2 Hex Hd x 50 MM Lg SS
3-9154-03 3 Lock Washer M16
4-5047-00 3 Nut M16 x 2 Hex

13 0-5650-50 1 Conditioner Discharge Housing
4-5370-00 12 Cap Screw M16 x 2 Hex Hd x 40 MM Lg
3-9154-03 12 Lock Washer M16
4-5047-00 12 Nut M16 x 2 Hex
14 8-0924-08 1 Conditioner Shaft Assembly
*0-5660-14 1 Conditioner Shaft
*5-0954-72 30 Conditioner Pick SS
*3-9070-03 30 Lock Washer 3/4” SS
*3-9052-03 30 Nut 3/4-16 NF Hex SS
15 0-5663-00 2 Motor Mount Bracket
3-9128-00 6 Cap Screw M16 x 2 Hex Hd x 50 MM Lg
3-9154-03 6 Lock Washer M16
4-5047-00 6 Nut M16 x 2 Hex
16 0-5664-00 1 Conditioner Motor Platform
3-9128-00 4 Cap Screw M16 x 2 Hex Hd x 50 MM Lg
4-5065-00 4 Flat Washer M16
3-9154-03 4 Lock Washer M16
4-5047-00 4 Nut M16 x 2 Hex
17 0-5666-00 4 Platform Stud
4-5095-00 16 Nut M20 x 2.5 Hex
18 See PAGE ONE 1 Conditioner Motor Base
19 See PAGE ONE 1 Conditioner Motor
20 See PAGE ONE 1 Conditioner Drive Sheave/Sprocket
See PAGE ONE 1 Conditioner Drive Sheave Bushing
21 See PAGE ONE 1 Conditioner Driven Sheave/Sprocket
See PAGE ONE 1 Conditioner Driven Sheave Bushing
22 See PAGE ONE 1 Driven Sheave/Sprocket Key
