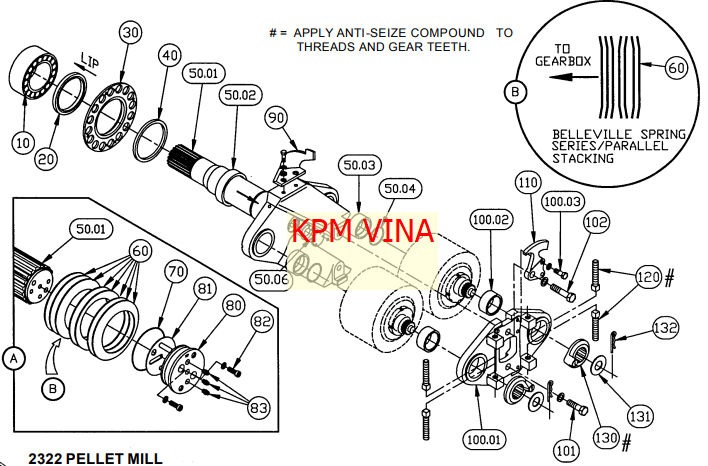

CPM2322

5
ITEM PART
NO NUMBER QTY PART DESCRIPTION
10 4659900 1 MAINSHAFT BEARING
20 4660100 1 MAINSHAFT SEAL
30 5809100 1 MAINSHAFT SEAL HOLDER
31 4562601 4 SOCKET HEAD CAP SCREW, M8 X 20 SS
32 3916002 2 SET SCREW M8 X 1.25 HEX SKT X 12 MM
40 4660700 1 V- RING, MAINSHAFT
50 8931807 1 3022-6 MAINSHAFT ASSEMBLY (LINEATOR)
50.01 5786206 1 MAINSHAFT MODEL 3022 – 6
50.02 5734703 1 SLEEVE WEAR
50.03 5641300 2 ROLLER SHAFT BUSHING (REAR)
50.04 4619200 2 0-RING
50.05 3018301 4 SOCKET HEAD PIPE PLUG 1/8″ SS
50.06 5823601 1 COVER, MAINSHAFT    3020,3022
50.07 5720369 1 MAINSHAFT FRONT GASKET
50.08 4676204 4 CAP SCREW M6 X 12 DIN 912 SKT HD
50.09 4598801 4 LOCK WASHER, M6
60 4503300 7 BELLEVILLE SPRING
70 4504300 1 0-RING
80 5773011 1 MAINSHAFT END CAP
81 5773054 1 MAINSHAFT ENDCAP GASKET
82 4508800 1 SOCKET HEAD CAP SCREW, M10 X 35
83 3095300 3 LUBE FITTING, 1/4″
84 4552301 1 SKT HD CAP SCR M12 X 35 SS DIN 912
85 3906502 1 LOCK WASHER/SKT HD – 3/8″
86 4502701 1 LOCK WASHER, M12, SS
90 5737701 2 WIPER
91 4502401 4 CAP SCREW M12 X 1.75 HEX HD X 35 MM
92 4502701 4 LOCK WASHER, M12, SS
93 4505201 2
FLAT WASHER M12, SS
100 8053903 1 FRONT ROLLER SUPPORT ASSEMBLY
100.01 5128208 1 FRONT ROLLER SUPPORT
100.02 5641302 2 ROLLER SHAFT BUSHING (FRONT)
101 3915609 1 SCR CAP M20 X 60 LG HEX HD
102 4627600 1 SCR CAP M20 X 80 LG HEX HD D933
103 4500402 2 LOCK WASHER M20
110 5134001 1 DEFLECTOR – CW
111 4502401 2 CAP SCREW M12 X 1.75 HEX HD X 35 MM
112 4502701 2 LOCK WASHER,  M12, SS
120 5161801 4 ROLLER ADJUSTING SCREW
130 5729906 2 ROLLER ADJUSTING GEAR
131 3907400 2 FLAT WASHER, SS
132 5093231 2 ADJUSTING GEAR CLIP
