CPM2322

8

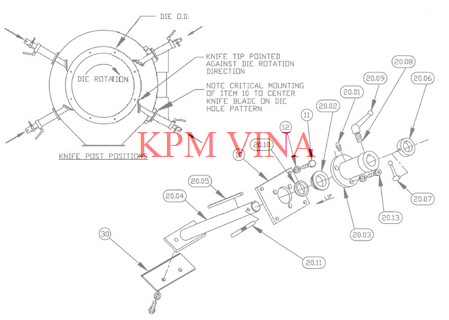

ITEM NO
10		 PART NUMBER
0438350		 QTY 2
PART DESCRIPTION
KNIFE POST MOUNTING PLATE
11 3912605 8 HEX HEAD CAP SCREW, M12 X 20, SS
12 4502700 8 LOCK WASHER, M12
20 8926603 2 KNIFE POST ASSEMBLY
20.01 3015500 2 LUBE FITTING, 1/8” NPT
20.02 5764600 2 BUSHING
20.03 5744402 2 KNIFE POST HOUSING
20.04 5744502 2 KNIFE POST
20.05 5764500 2 KEY
20.06 5744601 2 KNIFE POST STOP
20.07 4632602 2 KNIFEPOST HANDLE
20.08 5744701 2 HOUSING HANDLE SHAFT
20.09 4632601 2 HOUSING HANDLE
20.10 4664400 2 KNIFE POST SEAL
20.11 5166201 2 KNIFE POST HANDLE
20.12 4677700 2 SOCKET HEAD CAP SCREW M5 X 30
20.13 4504000 6 CAP SCREW M10 X 1.5 HEX HD X 20 MM L
20.14 4558900 6 LOCK WASHER M10 SS
30 5133206 2 KNIFE BLADE
31 4535201 4 HEX HEAD CAP SCREW, M10 X 30, SS
32 4507403 4 FLAT WASHER, M10, SS
33 4507501 4 LOCK WASHER, M10, SS
34 4506402 4 HEX NUT, M10, SS
