Buhler DPHD660 80272810

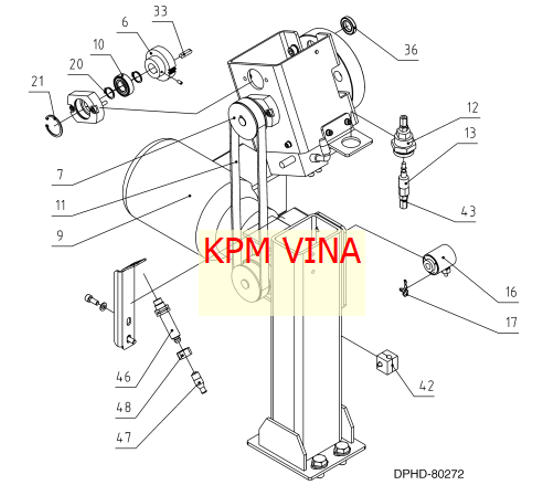

Roll adjustment drive

DPHD 10854010 Spur gear 30 teeth
DPHD 10855010 Toothed lock washer 8 mm, 28 teeth
DPHD 95247 Selection bill of materials: Drive motors *
UXN 56001025 Deep groove ball bearing D 20/42×12
UNN 64501008 Timing belt 960-8M-20
UXN 24049001 Pull-off coupling G 1/4″
UXN 24049002 Plug nipple G 1/4″
UXE 26655011 Rotary encoder, magnetic
UXE 26655012 Set of spring plates
UNN 14028015 Retaining ring
UNN 14028115 Retaining ring
UNN 28002153 Parallel key, form A 6/6×28
UNN 44009004 Shaft seal D 20/35×7
UNN 22009006 Clamp D 12
UNN 24028031 Union G 1/4″
UXE 26310194 Proximity switch, inductive
UXE 24002111 Cable socket M12x1 with cable L = 10000
UXE 24002150 Unlocking protector for M12
