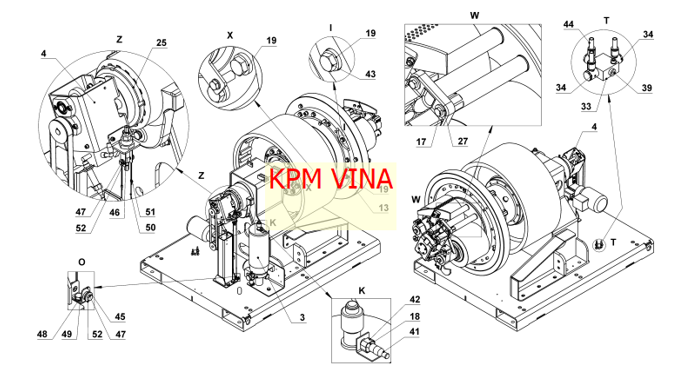

Automatic press unit, screwed lubricated centrally (Part 1)
| DPHE 80217810 | Central lubrication unit, assembly |
| DPHD 80272810 | Roll adjustment drive |
| UXN 10006428 | Hexagon head bolt M20x130 |
| UNN 10010232 | Hexagon head bolt M16x30 |
| UNE 26311014 | Proximity switch, inductive |
| UXN 14002006 | Washer D 40/20.5×8 |
| UNN 12026028 | Shaft nut KM-30, M150x2.0 |
| UXN 14002007 | Washer D 36/16.5×8 |
| UNN 24047102 | Cross manifold block |
| UNN 24037026 | Angle swivel union |
| UNN 10163003 | High-pressure plug 1/4″ |
| UXE 24002111 | Cable socket M12x1 with cable = 10000 |
| UXE 24002150 | Unlocking protector for M12 |
| UNN 10006426 | Hexagon head bolt M20x110 |
| DPHD 04133440 | Pneumatic hose |
| DPHD 80381810 | Strain relief bracket at bottom |
| DPHD 80380810 | Strain relief bracket at top |
| UNN 10008150 | Hexagon head bolt M6x10 |
| UNN 14000005 | Washer D 8.4/16×1.6 |
| UNN 10008212 | Hexagon head bolt M8x16 |
DPHD 80413500 Wire rope
| UNN 22008201 | Crimp sleeve 6/4×6 |
| UNN 14002001 | Washer D 6.4/18×1.6 |
