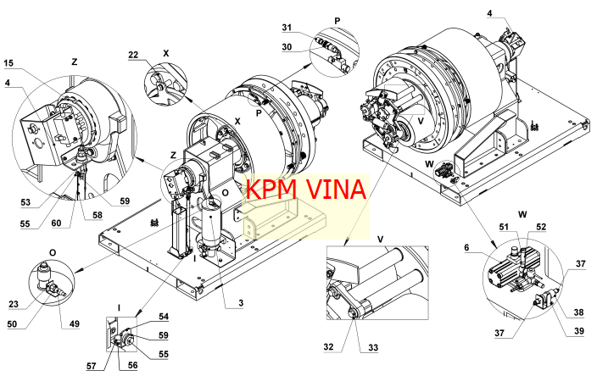

Manual press unit, clamped lubricated centrally (Part 2)
| DPHD-80341-810 | Roll holder module |
| DPHD-80412-810 | Manual roll adjustment |
| DPHD-80040-810 | Grease distributor |
| DPHD-10321-010 | Eccentric bushing |
| UXN -10066-063 | Screw bolt M20x130 |
| UNN -14023-028 | Tab washer D 150/205 |
| UNN -12026-028 | Shaft nut M150x2.0 |
| UNN -14002-005 | Washer D 13/37×3 |
| UNN -10008-334 | Hexagon head bolt M12x20 |
| UXN -14002-006 | Washer D 40/20.5×8 |
| UNN -12001-164 | Hex nut M20 |
| UNN -28001-418 | Parallel key 36/20×100 |
| UNN -44021-269 | O-ring D 3.53×66.27 |
| UNN -24037-026 | Angle swivel union |
| UNN -24047-102 | Cross manifold block |
| DPHD-95220-450 | Pneumatic hose |
| UXN -24024-003 | Reducing union D 8/6 |
