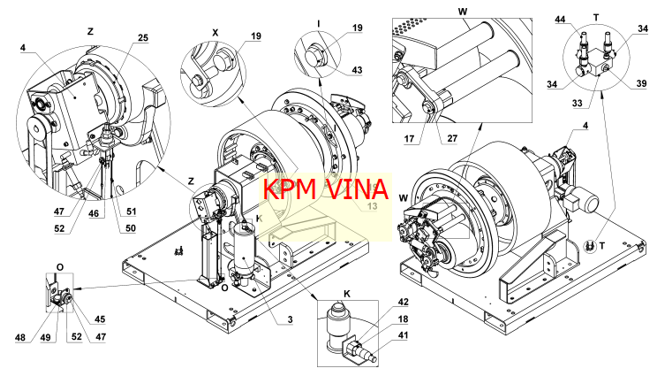

Manual press unit, fastened, lubricated centrally (Part 1)
| DPHE-80217-810 | Central lubrication unit, assembly |
| DPHD-80280-810 | Grease distribution holder |
| UXN -10006-428 | Hexagon head bolt M20x130 |
| UNN -10010-232 | Hexagon head bolt M16x30 |
| UNE -26311-014 | Proximity switch, inductive |
| UXN -14002-006 | Washer D 40/20.5×8 |
| UNN -12026-028 | Shaft nut M150x2.0 |
| UXN -14002-007 | Washer D 36/16.5×8 |
| UNN -24047-102 | Cross manifold block |
| UNN -24037-026 | Angle swivel union |
| UNN -10163-003 | High-pressure plug 1/4″ |
| UXE -24002-111 | Cable socket M12x1 with cable = 10000 |
| UXE -24002-150 | Unlocking protector for M12 |
| UXN -10006-426 | Hexagon head bolt M20x110 |
| DPHD-95221-440 | Pneumatic hose |
| DPHD-80381-810 | Strain relief bracket at bottom |
| DPHD-80380-810 | Strain relief bracket at top |
| UNN -10008-150 | Hexagon head bolt M6x10 |
| UNN -14000-005 | Washer D 8.4/16×1.6 |
| UNN -10008-212 | Hexagon head bolt M8x16 |
| DPHD-95221-500 | Wire rope |
| UNN -22008-201 | Crimp sleeve 6/4×6 |
| UNN -14002-001 | Washer D 6.4/18×1.6 |
