LA MECCANICA C630

1

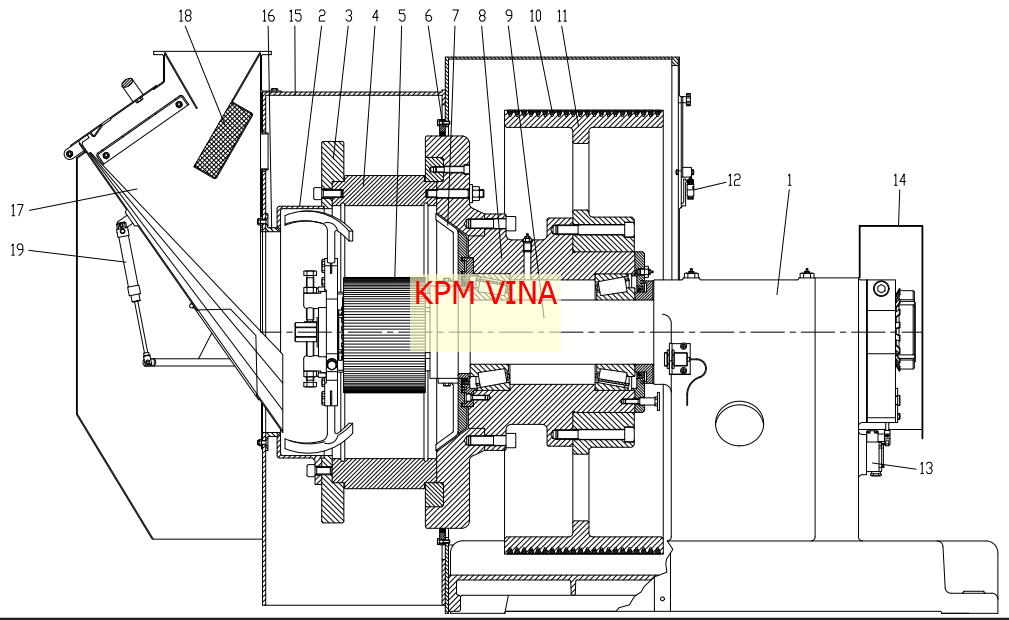

Pos. N.P.M. Code – Codice Name of parts
1 1 Frame
2 1 334.086.0 Rotary feed cone
3 1 329.085.0C Die flange
4 1 552.001.0 Die (type 630.200)
5 2 456.001.4 Roller assembly (type 630.200)
6 1 319.042.0 Belt access ring
7 2 329.070.0D Quill shaftscraper
8 1 319.006.5 Die holder (quill shaft)
1 319.006.5-02 Front die holder flange
1 319.006.5-01 Die holder hub
9 1 319.005.13 Main shaft
2 319.005.13-01 Main shaft bush
1 319.016.0 Nut for main shaft
10 22 ACG5V-180 Belt 5V-1800
11 1 V-belt pulley
12 1 EMEXCKD39H2P16EX Safety microswitch
13 1 E.MF1.016- Safety microswitch
14 1 Housing
15 1 Main door
16 1 329.036.0-05 Stationary feed cone
17 1 Conveyor
18 1 ASM500220-071 Magnet
19 1 BNC027150-CE Pneumatic cylinder
