LA MECCANICA C800

12

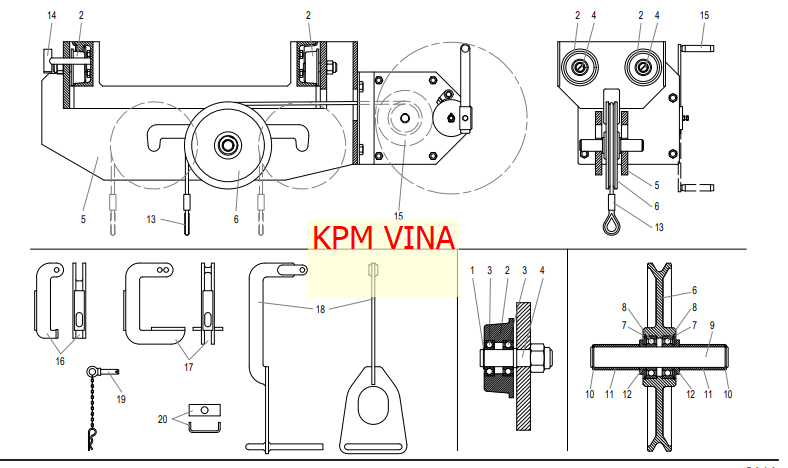

Pos. N.P.M. Code – Codice Name of parts
1 4 AASE025- Retaining ring E 25 UNI 7435
2 4 106.009.0 Whell
3 8 ACS6205-2RS Bearing FAG 6205-2RS
4 4 106.010.0 Pin
5 1 106.207.0 Carriage body
6 1 337.180.0-03 Pulley
7 2 AASI062- Retaining ring I 52 UNI 7437
8 2 ACS6206-2RS BearingFAG 6205-2RS
9 1 337.180.0-02 Pin
10 2 AASE030- Retaining ring E 25 UNI 7435
11 2 337.180.0-05 Spacer ring
12 2 337.180.0-04 Spacer ring
13 1 A.FU1.004- Wire rope
14 2 106.011.0 Carriage locking bolt
15 1 A.AM1.002- Drum winch
16 1 106.203.0 Die flange forcked strap
17 1 106.202.6 Die forked strap (Lamec 800.250)
18 1 106.205.4 Roller forked strap (Lamec 800.250)
19 1 106.204.0 Pin
20 1 106.206.0 Roller lock
