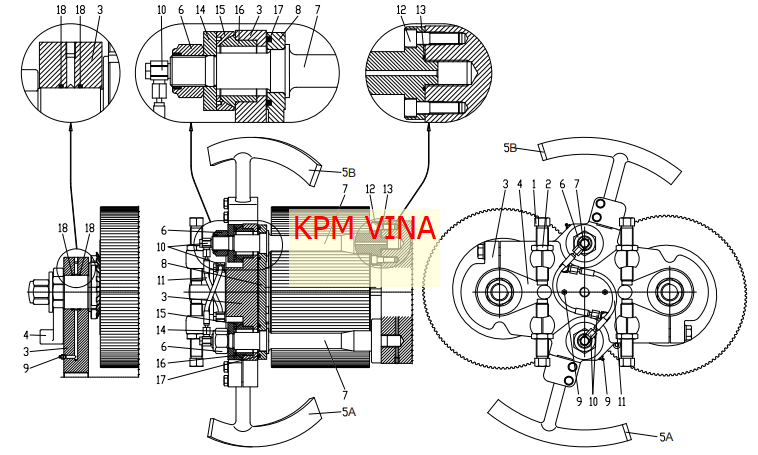

LA MECCANICA 800

3
Pos. N.P.M. Code – Codice Name of parts
1 4 339.136.2-02 Blot for locking lever
2 4 VDNBA2M30- Nut M 30 SS UNI 5589
3 1 339.043.8N Front roller support
4 2 339.136.2-01C Adjusting laver
5A 1 339.043.0-10 Deflector
5B 1 339.043.0-09 Deflector
6 2 VDAA8M36- Nut M 36 SS UNI 7473
7 2 339.052.7 Spacer rod
8 1 339.041.4-E Spacer flange
9 4 Grease nipple
10 4 A.RO1.002 Hydraulic nipple
11 2 339.043.7-04 Hydraulic pipe
12 16 VTCEA2M14-60 Bolt M14x60 SS UNI 5931
13 2 OR3137V- O-ring OR 3137-Viton
14 2 339.052.5-03 Washer for Spacer rod
15 2 339.052.4-03 Spherical washer for Spacer rod
16 2 339.052.4-04 Spherical busching for Spacer rod
17 2 A.BA2.002- Packing
18 4 OR4362V- O-ring OR 4362-Viton
