LA MECCANICA 800

4

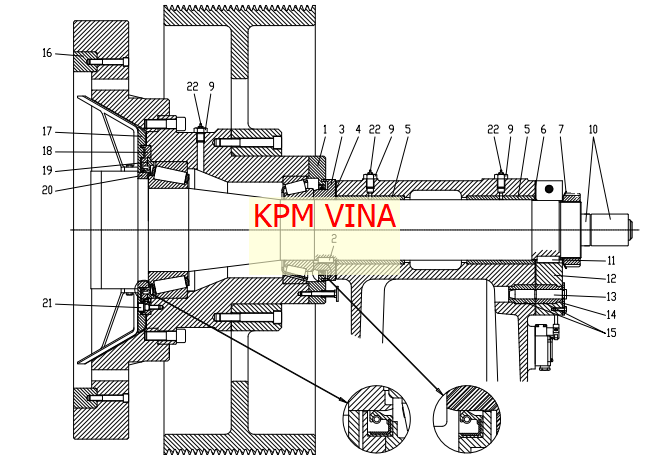

Gruppo traino Groupe d’entrainement Formhaltergruppe komplett
Pos. N.P.M. Code – Codice Name of parts
1 1 334.013.0 Rear main shaft seal holder
2 1 Key 18 x 11 x 40
3 1 334.012.0 Rear m/s seal ring
4 1 334.110.0 Front anti-clutch disk
5 2 334.014.0 Bronze bushing
6 1 334.111.0 Rear anti-clutch disk
7 1 AARSKFMB-34 Lock washer SKF MB 34
- -
9 3 Reduction 3/8″G-1/8″G
10 1 337.151.0 Grease distributor
11 1 339.029.0 Key
12 1 Shear pin housing
13 1 334.018.3 Shear pin
14 1 Shear pin lock
15 2 334.017.0 Shear pin bushing
16 1 339.067.2 Wear ring
17 1 339.010.3-02F Labyrinth seal
18 1 339.011.3 Front main shaft seal holder
19 1 339.010.3-03 Front main shaft seal ring
20 1 339.010.3-01 Front main shaft seal ring
21 1 Bolt M24x15 inox UNI 5923
22 3 Grease nipple
