LA MECCANICA 800

5

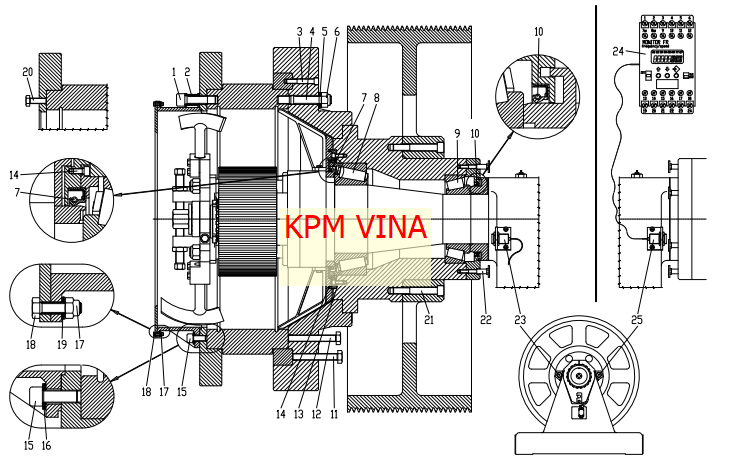

Pos. N.P.M. Code – Codice Name of parts
1 8 339.040.3-3 Special bolt
2 8 339.040.3-2 Special washer
3 8 VTCE8M16-100 Bolt M16x100 UNI 5931
4 16 339.040.4 Die lock bolt
5 16 339.040.2-02 Special washer
6 16 VDNM8M30 Bolt M 30 zinc-plated UNI 7473
7 1 AAT381342-019 Seal ring CB 381/342/19
8 1 ACSTMK249-249 Bearing
9 1 ACS32236- Bearing SKF 32236
10 1 AAT270240-015 Seal ring type CB 270/240/15
11 8 VTEF8M24-150E Bolt M24x150 UNI 5739
12 4 VTEF8M24-150E Bolt M24x150 UNI 5739
13 6 VTEA2M12-030 Bolt M12x30 SS UNI 5931
14 8 Bolt M6x12 SS UNI 5931
15 4 VTCE8M20-050 Bolt M20x50 UNI 5931
16 4 AMLT4020.42.2 Disc spring ø40/20.4×2.25
17 12 VDNMA2M08 Bolt M8 UNI 7473
18 12 VTEA2M08-030 Bolt M8x30 SS UNI 5737
19 24 AMLT168.2-0.9 Disc spring ø16/8.2×0.9
20 8 VTEF8M20-110E Bolt M20x110 UNI 5739
21 8 VTCE8M24-160 Bolt M24x160 UNI 5931
22 6 319.125.0-01 Energizing metals mass
23 1 E.IP1.007- Proximity detector
On request
24 1 NOT PROVIDED Electronic Speed control
1 NOT PROVIDED Amplifier
25 1 NOT PROVIDED Inductive sensor
