LA MECCANICA 800

6
Pos. N.P.M. Code – Codice Name of parts

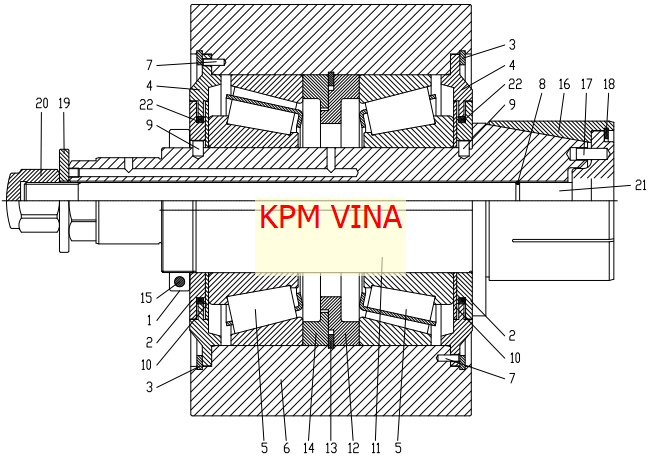

482.001.16 Press roll assembly
1 1 469.004.0 Shaht nut
2 2 469.013.0N Inner bearing cover
3 2 AASI300- Retaining ring I 300 UNI 7437
4 2 469.011.0 Outer bearing cover
5 2 ACS32324- Bearing SKF 32324
6 1 482.002.13 Roll shell
7 2 Pin ø6×20 UNI 1707
8 2 OR4125- Seal OR 4125
9 2 VSPN10016- Pin ø10×16 UNI 1707
10 2 469.012.0 Brass ring
11 1 482.003.6 Eccentric shaft
12 1 482.005.0 Spacer ring
13 1 AASI260- Retaining ring I 260 UNI 7437
14
15		 1
1		 482.006.0
VTCE8M08-060		 Spacer rin
Fixing screw for mobile chute
16 1 469.031.0N Expansion collar
17 1 Pin Ø12×30 UNI 8734A
18 1 AASI150- Retaining ring I 150 UNI 7437
19 1 469.026.0 Washer
20 1 469.010.0-E Nut
21 1 482.008.4 Bolt with clamping
22 2 Packing
