LA MECCANICA 800

1

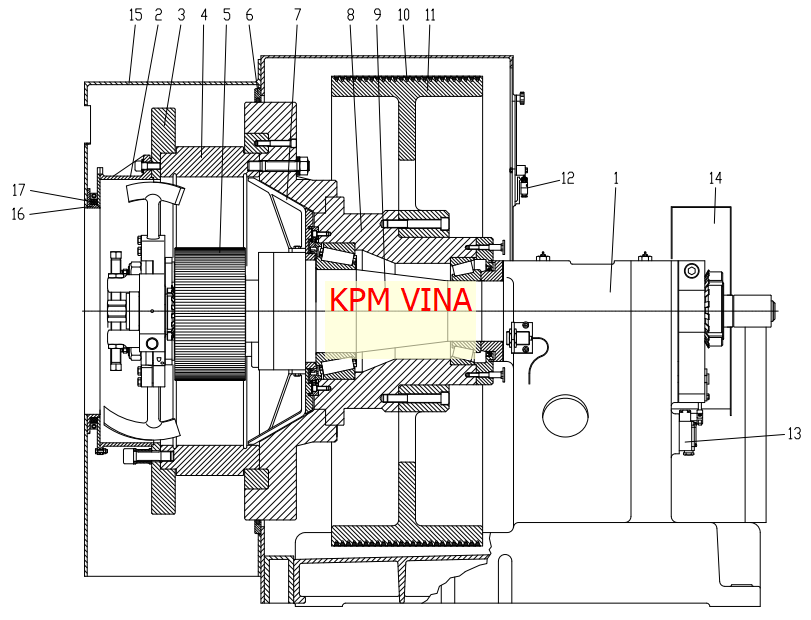

Pos. N.P.M. Code – Codice Name of parts
1 1 Frame
2 1 339.086.6 Rotary feed cone
3 1 339.085.6 Die flange
4 1 578.016.0 Die (type 800.250)
5 2 482.001.16 Roller assembly (type 800.250)
6 1 339.042.0 Belt access ring
7 2 339.070.6D Quill shaftscraper
8 1 339.006.17 Die holder (quill shaft)
1 339.006.17-02 Front die holder flange
1 339.006.6-01 Die holder hub
9 1 339.005.12 Main shaft
2 339.005.12-01 Main shaft bush
2 339.005.12-02 Special screw
1 334.016.0 Nut for main shaft
10 25 ACG5V-236 Belt 5V-2360
11 1 V-belt pulley
12 1 EMEXCKD39H2P16EX Safety microswitch
13 1 E.MF1.011- Safety microswitch
14 1 Housing
15 1 Main door
16 1 339.036.0-05 Stationary feed cone
