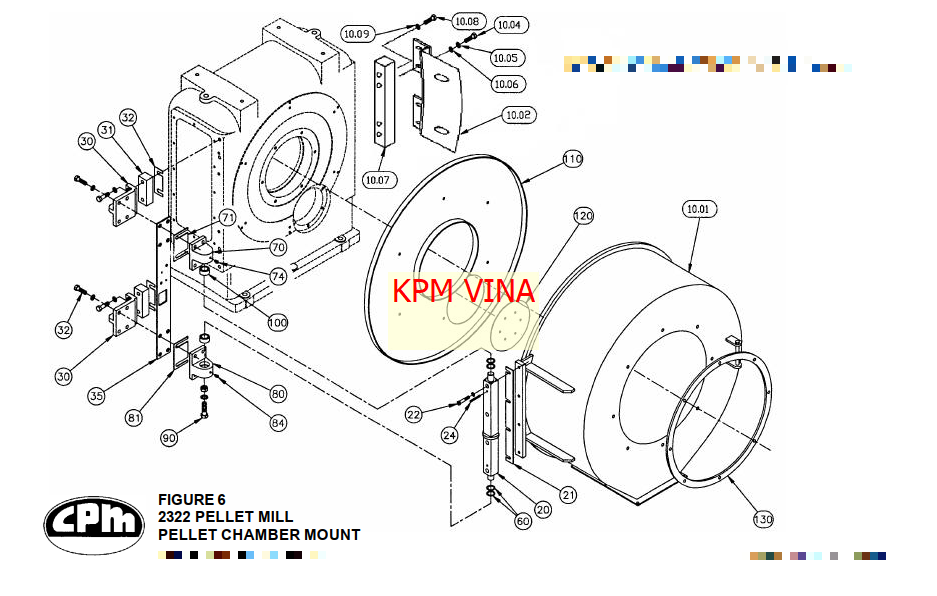

CPM3022 PELLET CHAMBER MOUNTING COMPONENTS

4503700	HI-COLLARLOCK WASHER, M16, DIN 7980
3015500	LUBE FITTING, 1/8″ NPT
3915603	HEX HEAD CAP SCREW, M20 X 55
4509500	HEX NUT, M20
3919100	LOCK WASHER, M20
4654700	SPHERICAL BEARING
5724902	GEARBOX FRONT LINER – 3022
4615300	CAP SCREW M10 X 1.5 HEX HD X 16 MM L
4507501	LOCK WASHER, M10, SS
5725000	PINION BEARING HOUSING COVER
4602600	CAP SCREW M8 X 1:25 HEX HD X 16 MM L
0554500	ADAPTER RING – FEED CHUTE
5606303	PELLET CHAMBER LATCH
4506500	FLAT WASHER, M16
3915308	SET SCREW M16 X 2 SKT HD X 20 MM LG
3902515	HEX HEAD CAP SCREW, 5/8″ NC X 3 3/4″
3906906	FLAT WASHER, 5/8″
3186100	LATCH SPRING
3904905	HEX NUT, 5/8″ NC FLEXLOC
3912804	SCR CAP M16 X 30 LG HEX HD
3915403	LOCK WASHER, M16
